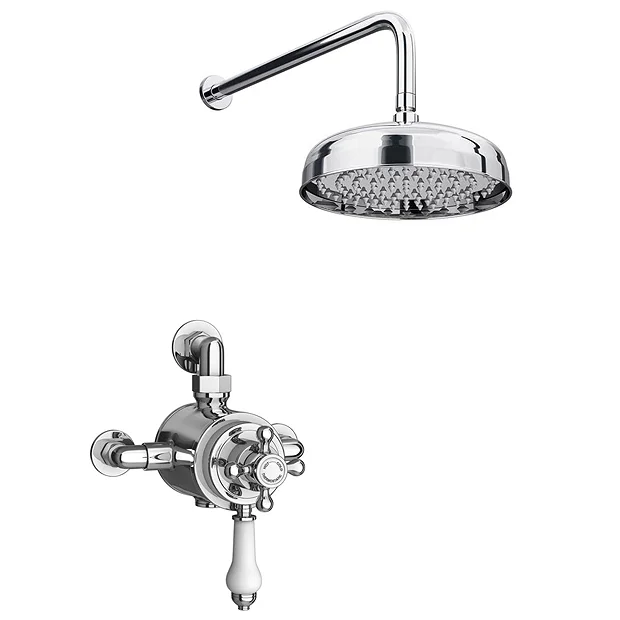

Trafalgar Dual Exposed Thermostatic Shower Pack (inc. Valve, Elbow + Fixed Shower Head)

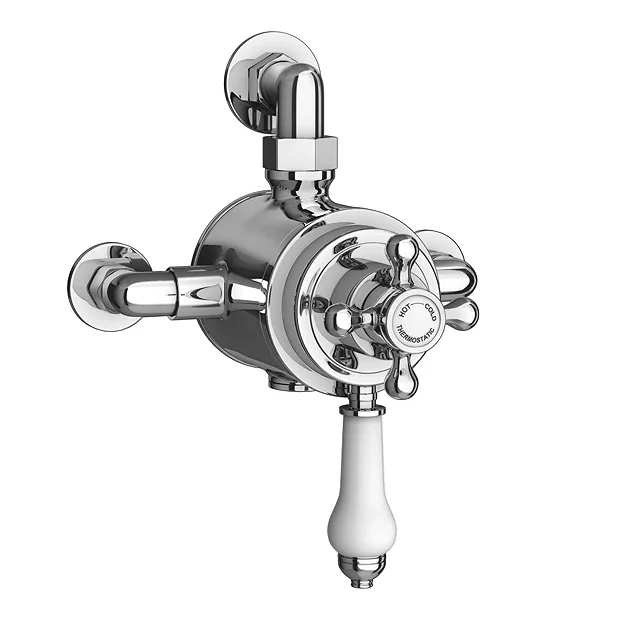

Trafalgar Traditional Dual Exposed Thermostatic Shower Valve with Return Elbow and Fixed Overhead Shower Head

The Trafalgar Traditional Dual Exposed Thermostatic Shower Valve Package offers thermostatic showering with two easy to operate controls, one operates flow control whilst the other allows temperature selection.

Designed to work with a single shower accessory, this valve has the added safety benefit of a built in anti-scald device should the cold water supply fail. The traditional style of this exposed shower valve adds a touch of sophistication and elegance in any bathroom.

Pack comes with a classic chrome plated back to wall return shower elbow and a traditional chrome 8 inch fixed overhead shower head and arm, create a opulent feel in your bathroom with this classically styled shower package.

Shower Valve Details

• Projection: 142mm
• Height: 178mm
• Type: Dual Exposed Shower Valve
• Colour/Finish: White/Chrome
• Manufactured from solid brass
• Smooth Operation with Quality Components
• Water Pressure: 0.5 bar to 5 bar
• Outlet: 1
• Standards EN200 and/or WRc/NSF
• Anti-scald technology
• Classic body with traditional lever and cross head handles
• Suitable for modern pressurised plumbing systems.
• 150mm between pipe inlet centres
• No diverter
• Outlet: 15 mm (1/2″ BSP)
• Flow rate of twin concealed valve::
• 0.5 bar-9.5L/M
• 1 bar-15.5L/M
• 2 bar-20L/M
• 3 bar-24L/M
• Supplied with Back to wall return shower elbow
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump.
• Valve can be fixed to the wall with the inlets exposed and facing upwards allowing the installation of exposed hot & cold pipework.

Shower Head and Arm Details

• Diameter: 210mm
• Height: 100mm
• Shower arm length: 345mm
• With Swivel ball joint
• Style: Traditional
• Colour/Finish: Polished Chrome
• Material: Brass Internals
• Pressure requirement 0.5 bar minimum
• Silicone nozzles mean that any limescale deposits can simply be rubbed away
• Installation of the arm requires rear access behind the wall.

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Images are for illustrative purposes only

Comprises

(1) Trafalgar Traditional Dual Exposed Thermostatic Shower Valve
(1) Back To Wall Return Shower Elbow
(1) Traditional 8″ Shower Head with Swivel Joint
(1) Chrome 345mm Round Wall Mounted Shower Arm

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
