Milan Square Push-Button Shower Valve Pack With Handset + Rainfall Shower Head

Milan Square Push-Button Shower Valve Pack with 2 Outlets (Handset + Rainfall Shower Head)

After a long day, relax under a luxurious rainfall shower head with this Milan Shower Valve Pack. Or, if you prefer, use the detachable handset for a more targeted water flow – not to mention more thorough rinsing. Made from strong brass and finished in chrome, this 2 outlet shower valve is hardwearing and easy to keep looking smart. A contemporary square handle enables you to change the temperature of this wall mounted shower while two simple push buttons turn the two outlets on and off.

Shower Valve Details

• Height: 215mm
• Width: 120mm
• Style: Modern
• Colour/Finish: Chrome Plated
• Valve Handles: Square
• Brass Internals
• Select push button On/Off control for 2 outlets
• Buttons provided: hand shower and overhead shower
• Thermostatically controlled
• Water Pressure: 0.5 bar to 5 bar
• Easy to use
• Rectangular Faceplate
• For use with 2 Outlets
• Bottom knob controls temperature.
• Instant start/stop activation.
• Suitable for modern pressurised plumbing systems
• Hot water temperature 55 to 85 Degrees
• Shower valve will not work efficiently on a gravity fed tank system, unless a booster pump is installed.
• Should a pump be required we recommend a universal or negative head pump
• Flow Rates:
• 0.5 bar – 3.5 L/M
• 1 bar – 9 L/M
• 2 bar – 15 L/M
• 3 bar – 18.5 L/M
• 4 bar – 21.5 L/M
• 5 bar – 24 L/M

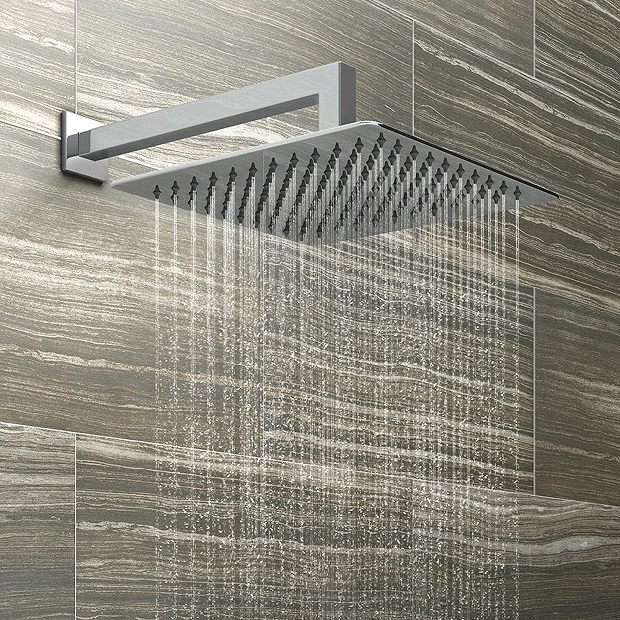

Shower Head Details

• Head Size: 300 x 300mm
• Arm Length: 393mm
• Style: Modern
• Colour/Finish: Chrome Effect
• Material: Stainless Steel Head
• Thickness/Profile: 3mm (excluding swivel joint)
• 90-degree Bend Wall Mounted
• Pressure requirement: 0.5 bar minimum
• Inlet Connections: 1/2″ BSP
• Supplied with swivel joint Rub clean nozzles makes this item easy to clean and maintain
• Shower head chrome plated plastic, not metal

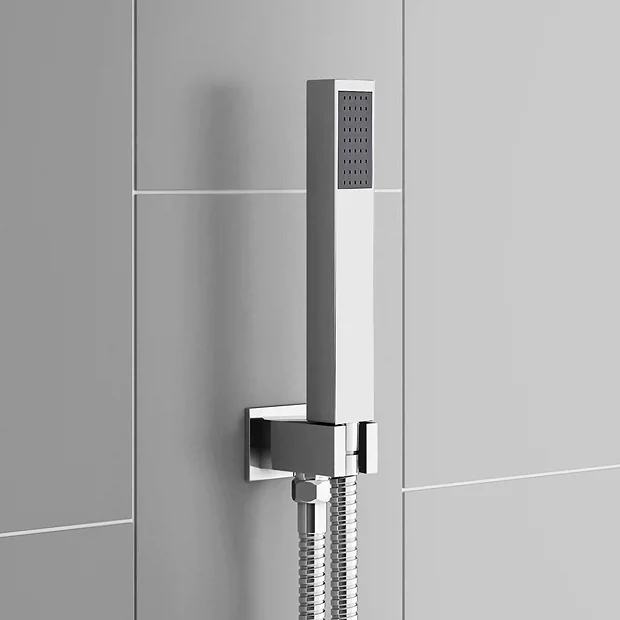

Square Outlet Elbow with Parking Bracket, Flex + Handset Details

• Depth: 63mm
• Height: 228mm
• Width: 40mm
• Manufactured To The Highest Standards
• Rectangular Handset with Built in Outlet
• Suitable for all plumbing systems
• 1.5m Shower flex –  Brass / Chrome plated
• Outlet Elbow with Parking Bracket – Brass / Chrome plated
• Rectangular handset – ABS plastic / Chrome plated
• Rust resistant hose
• Wall mounted
• Highly polished finish
• Square handset holder

Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)

All measurements are approximate

Product images for illustration purposes only

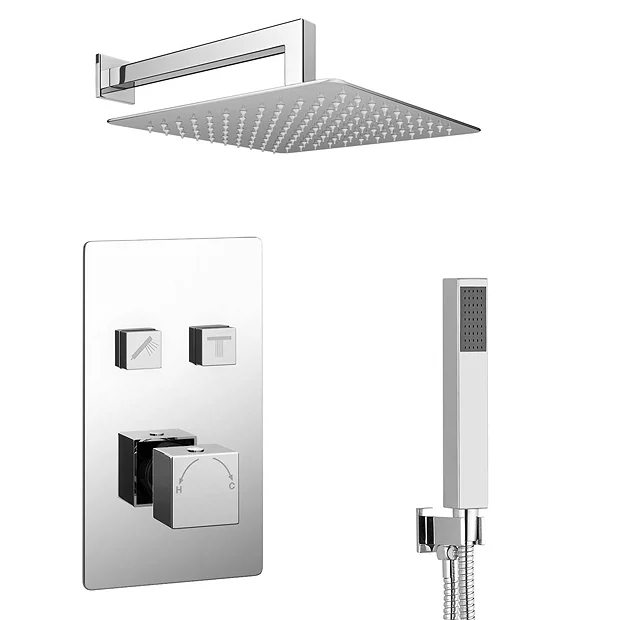

Comprises

(1) Milan Twin Modern Square Push-Button Concealed Shower Valve with 2 Outlets
(1) Milan 300 x 300mm Ultra Thin Square Shower Head
(1) 90 Degree Bend Shower Arm
(1) Square Outlet Elbow with Parking Bracket, Flex + Handset

Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
