Arezzo B-Shaped Shower Bath Suite – 1700mm

Arezzo B-Shaped Shower Bath Suite – 1700mm

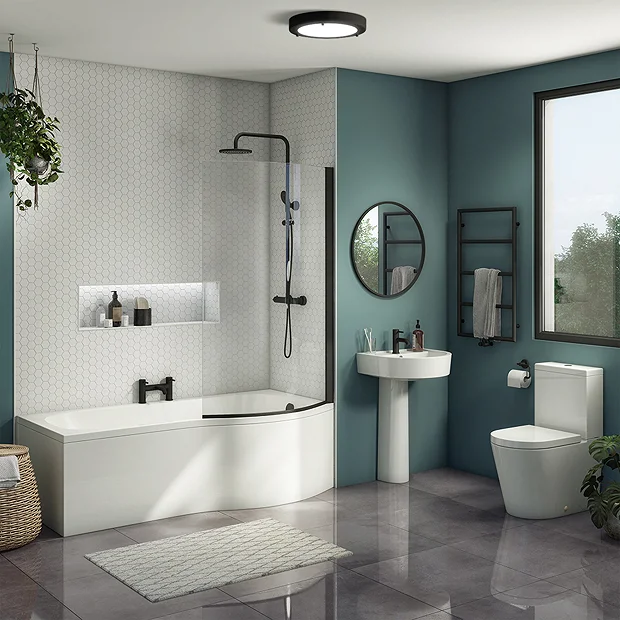

The stylish rounded Arezzo bathroom suite features everything you need to give your bathroom a stunning modern makeover. Suite comes with a compact and elegant curved bath, toilet and basin. It’s back to wall close coupled toilet ensures all pipework is well concealed while the clever rimless design improves flushing hygiene and reduces bacteria.

The spacious B-shaped shower bath which provides plenty of room for showering and bathing, supplied with a 6mm curved bath screen made from toughened glass with the modern sleek matt black profile protects your floor from prevents water leaking. Pair the with a striking matt black mixer tap and shower for a statement finishing touch.

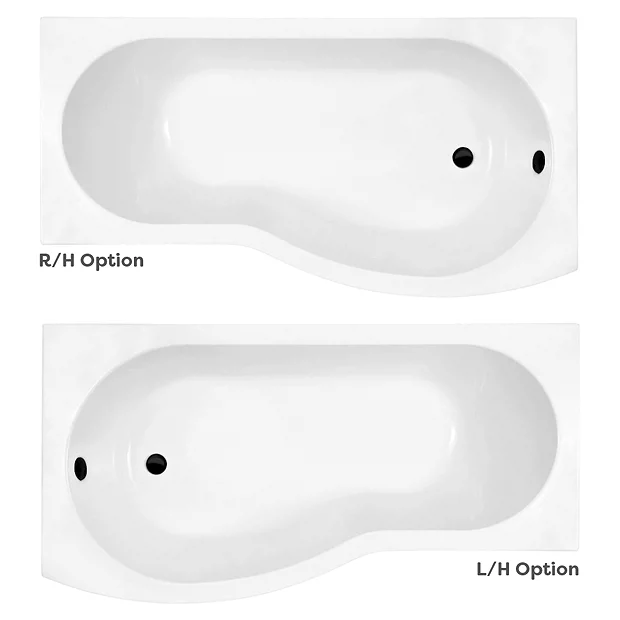

*Bath is available in Left or Right hand options.

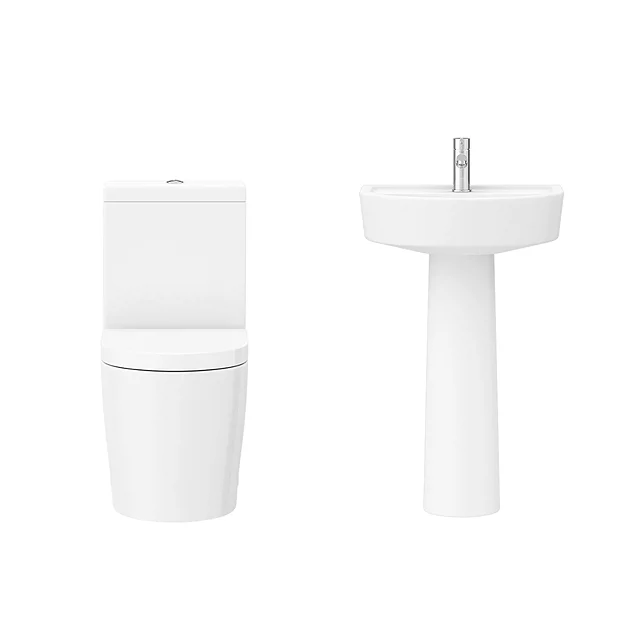

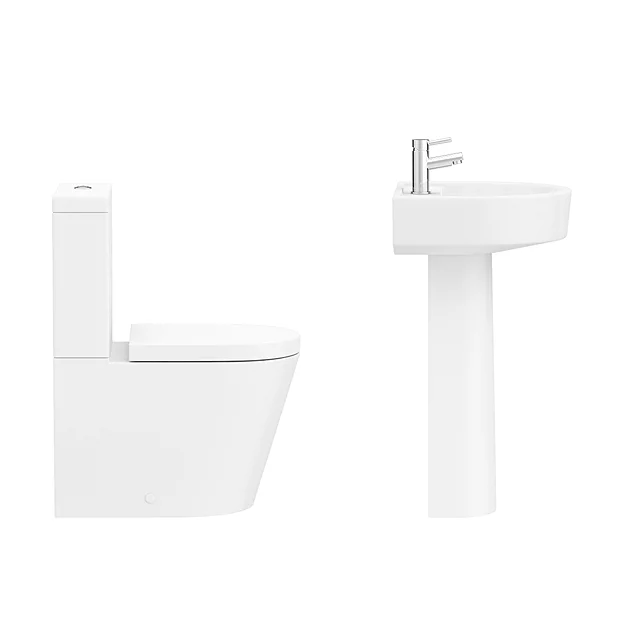

Toilet Details

• Height: 825mm
• Width: 385mm
• Depth: 640mm
• Height of toilet pan: 405mm
• Slimline sandwich style toilet seat
• WRAS approved cistern fittings
• Colour/Finish: Gloss white
• Material: Ceramic / PP
• Toilet Pan Type: Back To Wall
• Pan Trap Style: P Trap
• Close Coupled Cistern
• Central, Dual push-button flush (4/6ltr Flush)
• Internal Overflow
• Rimless technology
• Horizontal outlet
• Comes with WC pan fixing kit

Basin + Pedestal Details

• Width: 520mm
• Height: 825mm
• Depth: 450mm
• Colour/Finish: Gloss white
• Material: Ceramic construction
• Tap Holes: 1
• Round Basin with overflow
• Supplied with full pedestal

Bath Details

• Dimensions: 1700mm x 736mm (900mm at widest point) Approx.
• Height: 415mm (Approx.)
• Colour/Finish: Gloss White
• Material: Acrylic
• Type: B-Shaped Shower Bath
• Bath thickness: 4mm (Approx.)
• Comes with metal bath legs
• Supplied with quality curved acrylic front panel
• Taps & waste not included
• Bath will have a protective plastic film which should be removed once installed

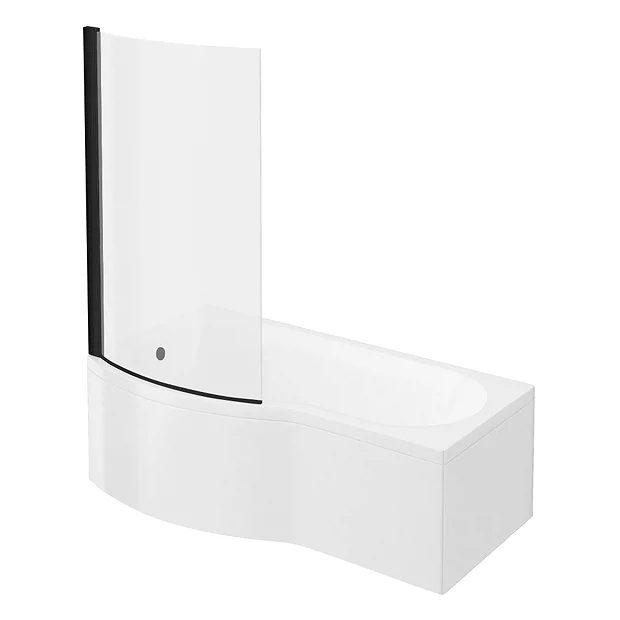

Matt Black Bath Screen Details

• Height: 1435mm
• Width: 840-855mm
• Profile Material: Aluminium
• 180 Degree Pivot Hinge
• Reversible Design (Choice of left or right fitting)
• 6mm toughened safety glass
• Matt black wall profile
• Hinged curved bath screen
• Frameless Bath Screen
• Utilise space in your bathroom and create a showering space within your bath
• Suitable for use with B curved shower baths
• Black PVC bath screen seal prevents water leaking

Shower, Tap and Waste not included

Tap holes have to be drilled by customer

Optional Bath end panel (BBTEP) sold separately

There will be an element of compression in the thickness due to the bath forming process but the advised overall thickness for the bath tub would be around 4mm.

Guarantee: 5 Year
Toilet seat guaranteed for (1 year)
Bath Screen guaranteed for (2 year)

Comprises

(1) B Shaped Curved Bath with Feet
(1) B Shaped Curved Acrylic Front Bath Panel
(1) Matt Black B Shaped Curved Hinged Screen
(1) Close Coupled Cistern + Fittings
(1) BTW Close Coupled Rimless Pan
(1) Soft Close Seat + Fixing Kit
(1) Medium 520mm 1TH Basin
(1) Full Pedestal
